LC LED-N500TGR2H:
5mm 2 PIN Green and Red Bicolor Diffused LED
|
PRODUCT DESCRIPTION |
|
|
(1) RoHS Compliant
Part |
(4) Moisture &
UV Resistance Epoxy Len |
|
(2) Super Bright
Bi-Color 5mm Green & Red LED Lamp |
(5) Sun Light
Viewable LED Lamp |
|
(3) Excellent color
mixing characteristics |
(6) Rugged design
suitable for both indoor & outdoor use |
Absolute Maximum Rating
(Ta = 250C)
|
PARAMETER |
MAXIMUM RATING |
UNITS |
|
DC Forward Current |
30 |
mA |
|
Peak Pulse Forward Current (1) |
100 |
mA |
|
Avg. Forward Current |
30 |
mA |
|
Operating Temperature |
-25
to +85 |
0C |
|
Storage Temperature |
-40
to +100 |
0C |
|
Lead Soldering Temperature |
2600C for 6 seconds |
|
(1)
Pulse width of 1/10 duty cycle and
10msec max. width and for long operating life recommended max. of 20mA
Electro-optical
Characteristics (Ta = 250C)
|
PARAMETER |
SYMBOL |
CONDITIONS |
MIN. |
TYP. |
MAX. |
UNIT |
|
Forward
Voltage (Red) |
VF |
IF
= 20mA |
1.8 |
|
2.2 |
V |
|
Forward
Voltage (Green) |
VF |
IF
= 20mA |
2.8 |
|
3.4 |
V |
|
Reverse
Voltage |
VR |
IR
= 100mA |
|
|
5 |
V |
|
Dominant
Wavelength (Red) |
lD |
IF
= 20mA |
625 |
|
635 |
nm |
|
Dominant
Wavelength (Green) |
lD |
IF
= 20mA |
520 |
|
535 |
nm |
|
Viewing Angle |
2q1/2 |
IF
= 20mA |
|
75 |
|
Deg. |
|
Luminous Intensity
(Red) |
IV |
IF
= 20mA |
2,000 |
|
4,000 |
mcd |
|
Luminous
Intensity (Green) |
IV |
IF
= 20mA |
3,000 |
|
5,000 |
mcd |

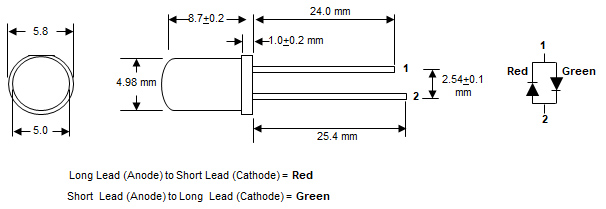

DEVICE DRAWING
|
